Using the Optimisation Service

Optimisation-as-a-Service was introduced four years ago. It has since been reworked substantially and now runs a best-of-breed suite of native solvers alongside ojAlgo’s own, behind the same ExpressionsBasedModel code you already have.

This post walks through three steps:

  1. Run your existing ExpressionsBasedModel code against the public shared instance.
  2. Deploy your own instance.
  3. Add a licence key to enable the native solvers and multi-core solving.

1 – Try It on the Shared Instance

The example uses the service’s client library. It is one Maven dependency with no transitive dependencies of its own:

<dependency>
    <groupId>se.optimatika</groupId>
    <artifactId>optimisation-service-client</artifactId>
    <version>1.1.0</version>
</dependency>

The client is optional — the service has a plain REST API that any language can call — but with ojAlgo it is by far the simplest route. The client also has a modeller of its own, OptModel, for applications that do not use ojAlgo. From ojAlgo 57.7.0 a model is written the same way in both — see ExpressionsBasedModel and OptModel, side by side.

The example below makes an ExpressionsBasedModel solve remotely, on the public shared instance of the service, free and without sign-up. It runs as it is, and the comments show the two things you change in your own code: create the model from an environment configured with a remote solver, and call submit(Sense) instead of minimise() or maximise().

Example Code

OptimisationAsAService.java
import java.util.concurrent.ExecutionException;
import java.util.concurrent.Future;

import org.ojalgo.OjAlgoUtils;
import org.ojalgo.netio.BasicLogger;
import org.ojalgo.optimisation.ExpressionsBasedModel;
import org.ojalgo.optimisation.Optimisation;
import org.ojalgo.optimisation.Optimisation.Environment;
import org.ojalgo.optimisation.Optimisation.Result;
import org.ojalgo.optimisation.Optimisation.Sense;
import org.ojalgo.optimisation.Variable;

import se.optimatika.optimisation.service.client.OptClientV1;

/**
 * A program that shows how to use Optimatika's Optimisation-as-a-Service.
 *
 * @see https://www.ojalgo.org/2026/10/using-the-optimisation-service/
 * @see https://www.ojalgo.org/2022/10/optimisation-as-a-service/
 */
public class OptimisationAsAService {

    public static void main(final String[] args) throws InterruptedException, ExecutionException {

        BasicLogger.debug();
        BasicLogger.debug(OptimisationAsAService.class);
        BasicLogger.debug(OjAlgoUtils.getTitle());
        BasicLogger.debug(OjAlgoUtils.getDate());
        BasicLogger.debug();

        /*
         * Create a client for the optimisation service.
         */

        OptClientV1 client = OptClientV1.newInstance("https://service-api.optimatika.se");

        /*
         * Verify the service is up and running.
         */

        if (!client.isServiceAvailable()) {
            BasicLogger.error("Service is not available!");
            return;
        }

        BasicLogger.debug("Service environment: {}", client.getServiceEnvironment());

        /*
         * If you already have a working model built using ojAlgo's ExpressionsBasedModel you can use that as
         * is. Here's how:
         */

        Environment environment = Optimisation.newEnvironment();
        /*
         * Even if you never used Optimisation.Environment before, there is always an implicit default
         * environment. What we did here is simply to create a separate environment to use explicitly. Then
         * configure that to use a remote solver.
         */
        environment.setRemoteSolver(client::putOnQueue, client::pollResult);
        /*
         * Finally, use the environment as the model factory.
         */
        ExpressionsBasedModel model = environment.newModel();

        /*
         * Let's just build a trivial model...
         */

        Variable varA = model.newRealVariable("A").lower(0);
        Variable varB = model.newRealVariable("B").lower(0);

        model.newConstraint("SumIs2").set(varA, 1).set(varB, 1).level(2);

        model.getObjective().set(varA, 10).set(varB, -10);

        /*
         * Now, to actually solve remotely, call model.submit(Sense)
         */

        Future<Result> max = model.submit(Sense.MAX);
        /*
         * Submitting a large MIP model to solve remotely, it may take a while before you get the response.
         */
        Result result = max.get();

        BasicLogger.debug();
        BasicLogger.debug("Maximised => state={}, value={}", result.getState(), result.doubleValue());
        BasicLogger.debug("A={}, B={}", result.get(0), result.get(1));

        Future<Result> min = model.submit(Sense.MIN);
        result = min.get();

        BasicLogger.debug("Minimised => state={}, value={}", result.getState(), result.doubleValue());
        BasicLogger.debug("A={}, B={}", result.get(0), result.get(1));

        // To summarise what you need to do in code:
        //
        // 1) Create the model instance using an environment configured to solve remotely
        // 2) Solve using model.submit(Sense) rather than model.minimise() or model.maximise()
        //
        // Nothing else!

    }

}

Console Output

class OptimisationAsAService
ojAlgo
2026-11-04

Service environment: {"build":{"module":"polar","built":"2026-11-03T14:25:10Z","commit":"c9cb581","branch":"develop","dirty":"false"},"runtime":"6GB/8threads x86_64 [8GB/8threads, 8MB/8threads, 256kB/2threads, 32kB/2threads]","licence":"Polar shared instance (no licence key — ojAlgo solvers only, max 1000 variables/constraints)","solvers":{"probed":true,"available":["LP-JVM","MILP-JVM","MIQP-JVM","QP-JVM"]}}

Maximised => state=OPTIMAL, value=20.0
A=2.0, B=0.0
Minimised => state=OPTIMAL, value=-20.0
A=0.0, B=2.0

Without a licence key the shared instance runs as any server without one does — the licence and solvers fields show what that means: ojAlgo’s own solvers, for models of up to 1,000 variables or constraints. With a key, the full best-of-breed suite of solvers comes in too. Don’t send the shared instance anything confidential. For production, the next step is an instance of your own.

2 – Deploy Your Own Instance

The service ships as a public container image, so it runs anywhere containers run. No registry account or credentials are needed:

ghcr.io/optimatika/optimisation-service

Each of the major clouds has a product that deploys a container with little more than the image name:

  • AWS — Amazon ECS Express Mode (the successor to App Runner)
  • GCP — Cloud Run
  • Azure — Container Apps

We find Google Cloud Run particularly convenient. With a GCP account and the Google Cloud CLI installed, this is all it takes:

gcloud run deploy my-opt-serv-test \
  --image ghcr.io/optimatika/optimisation-service \
  --region europe-north1 \
  --cpu 4 \
  --memory 2Gi \
  --max-instances 1 \
  --allow-unauthenticated

The image is the only fixed part; name, region, CPU and memory are up to you. Two of the flags matter more than they look:

  • --max-instances 1 — results are held in memory by the instance that solved them. With several instances, a poll can reach one that has never seen your model. To scale out, run separate services rather than letting one service autoscale.
  • --allow-unauthenticated — makes the instance reachable by anyone who has the URL. The service has no authentication of its own; it is designed to sit inside your network. That is fine for a short test from your laptop. For anything else, restrict who can reach it: --ingress internal limits it to your own VPC, or put an authenticating gateway in front of it. The security notes in the documentation cover this.

By default Cloud Run allocates CPU only while it is handling a request, and the service solves in the background between polls. In our tests that made no practical difference — a MIPLIB model took about 12 seconds either way — but if long solves seem to stall, --no-cpu-throttling gives the instance CPU all the time, at the cost of paying for it while it is up.

The command prints the service URL. Later commands take the service name you chose (my-opt-serv-test), not the URL. Point OptClientV1.newInstance(...) in the example at that URL and run it again.

If you would rather click than type, the Cloud Run console does the same job. Its Create service form asks for the same things the command above passes as flags: the image URL, a service name, a region, and whether the service is publicly reachable. Set the maximum number of instances to 1 in its scaling settings before you create it.

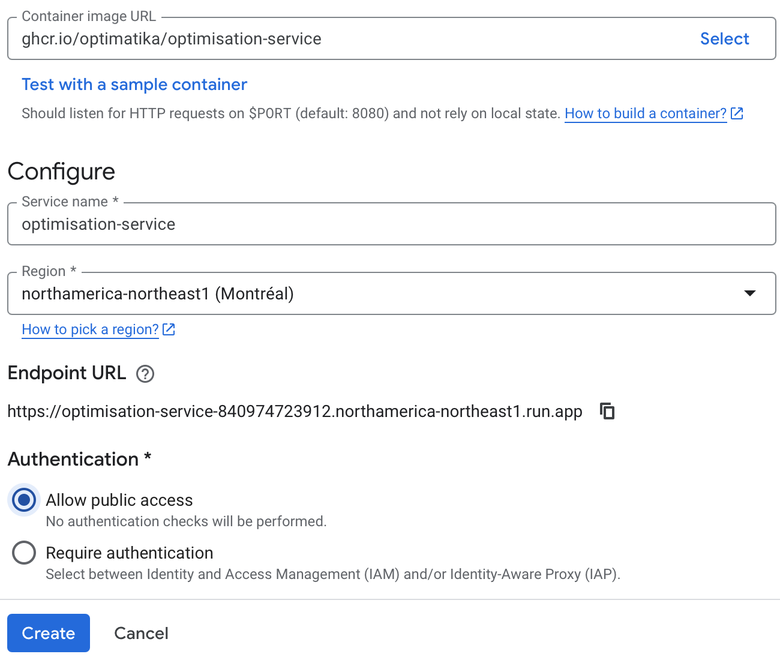

Screenshot of the Cloud Run console's Create service form, filled in with the image URL ghcr.io/optimatika/optimisation-service, a service name, a region, and public access selected
Screenshot: the lower half of Cloud Run’s Create service form. The region shown is just an example; any region works. Allow public access is the console’s name for --allow-unauthenticated, with the same caveat as above.

Without a licence key the service runs in restricted mode: ojAlgo’s own solvers on a single core, for models of up to 1,000 variables or constraints. That is free, and enough to test your setup end to end. Once that works, the same instance becomes the full service with a licence key — nothing to redeploy.

3 – Unlock the Full Solver Suite

The native solvers and multi-core solving come with an Optimatika Subscription: one subscription, with support included and the service billed by use. The checkout issues a licence key. Set it on the service:

gcloud run services update my-opt-serv-test \
  --region europe-north1 \
  --update-env-vars "OPTIMATIKA_LICENCE_KEY=your-key"

The update restarts the service with the key in place. Use --update-env-vars rather than --set-env-vars: it adds the key and keeps any other variables the service has, where --set-env-vars replaces them all. The same command works on a service that is already running — nothing else about it changes. For a production service, keep the key in Secret Manager instead of a plain environment variable (--update-secrets OPTIMATIKA_LICENCE_KEY=optimatika-licence:latest; the service account needs the Secret Manager Secret Accessor role).

To confirm the key was accepted, ask the server what it sees:

curl -s https://your-service-url/optimisation/v1/environment

The licence field says whether the key is in force, and solvers lists the native solvers, as in the console output above.

What leaves your deployment. Your models, input data and results do not — they are held in memory only and expire an hour after last access. A licensed server reports its usage to Optimatika every five minutes: the licence key, the solves it runs at a time and their threads, and the core-minutes used — nothing about your models. The answer to that report is its licence check. What the subscription includes, and how usage is billed, is on the subscription page.

Deployment on Kubernetes, sizing, the REST API and the full configuration reference are in the Optimisation Service documentation.
