Just discovered a new Java LP solver, and did a quick update to the Pure Java LP Solver Benchmark.

Apache Commons Math (ACM) contains an LP solver. Version 3.6.1 of ACM was released in March 2016. Since then there’s been no updates. I believe v3.6.1 is officially not supported anymore, but v4.0.0 is still a work progress and not released. I always thought this was a bit strange…

Hipparchus was forked from ACM in 2016. Apparently with the main developers moving from ACM to the new Hipparchus project. This could explain why ACM hasn’t been updated since then. I’m primarily surprised I didn’t find out about Hipparchus until now.

Strictly speaking the LP solver in Hipparchus is not new and not necessarily different from the one in ACM, but I reran the Pure Java LP Solver Benchmark with Hipparchus included to find out. Here are the results:

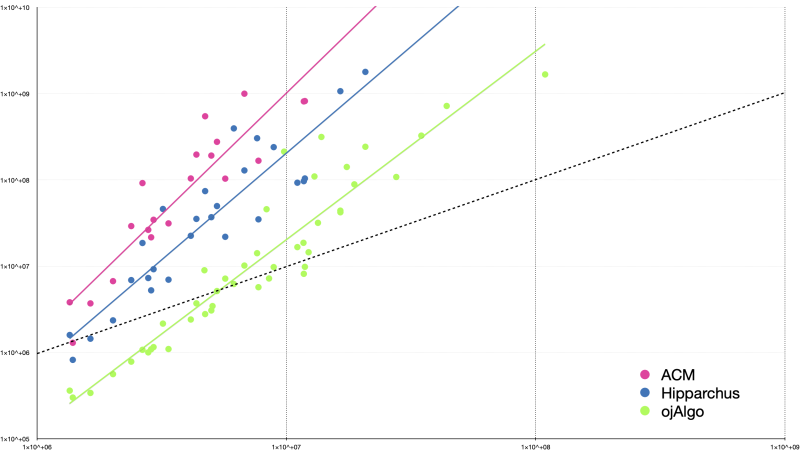

ojAlgo, Hipparchus & ACM compared to CPLEX

The LP solver in Hipparchus has improved since forked from ACM. It’s faster and handles a few more cases/models than ACM. Still, compared to ojAlgo, it is much slower and handles significantly fewer cases.

The versions compared are:

  • Hipparchus 2.2
  • ACM 3.6.1
  • ojAlgo 52.0.0-SNAPSHOT

You may want to read the original Pure Java LP Solver Benchmark post to get the details:

Benchmark Results

Model Name            Solver Name           Result State          Time
ADLITTLE              ACM                   OPTIMAL               21.644625ms
ADLITTLE              CPLEX                 OPTIMAL               2.868451ms
ADLITTLE              Hipparchus            OPTIMAL               5.260293ms
ADLITTLE              ojAlgo                OPTIMAL               1.091382ms
AFIRO                 ACM                   OPTIMAL               1.29884ms
AFIRO                 CPLEX                 OPTIMAL               1.391055ms
AFIRO                 Hipparchus            OPTIMAL               0.823148ms
AFIRO                 ojAlgo                OPTIMAL               0.301112ms
AGG                   ACM                   OPTIMAL               167.000546ms
AGG                   CPLEX                 OPTIMAL               7.726842ms
AGG                   Hipparchus            OPTIMAL               34.962631ms
AGG                   ojAlgo                OPTIMAL               5.718714ms
AGG2                  ACM                   OPTIMAL               813.284222ms
AGG2                  CPLEX                 OPTIMAL               11.74726ms
AGG2                  Hipparchus            OPTIMAL               96.809732ms
AGG2                  ojAlgo                OPTIMAL               8.171202ms
AGG3                  ACM                   OPTIMAL               820.1127ms
AGG3                  CPLEX                 OPTIMAL               11.864168ms
AGG3                  Hipparchus            OPTIMAL               104.029883ms
AGG3                  ojAlgo                OPTIMAL               9.846324ms
BANDM                 ACM                   FAILED                TIMEOUT
BANDM                 CPLEX                 OPTIMAL               13.386505ms
BANDM                 Hipparchus            FAILED                TIMEOUT
BANDM                 ojAlgo                OPTIMAL               31.851977ms
BEACONFD              ACM                   OPTIMAL               191.590583ms
BEACONFD              CPLEX                 OPTIMAL               5.000415ms
BEACONFD              Hipparchus            OPTIMAL               37.023864ms
BEACONFD              ojAlgo                OPTIMAL               3.074742ms
BLEND                 ACM                   OPTIMAL               26.416073ms
BLEND                 CPLEX                 OPTIMAL               2.792674ms
BLEND                 Hipparchus            OPTIMAL               7.306609ms
BLEND                 ojAlgo                OPTIMAL               1.005236ms
BOEING1               ACM                   FAILED                UNSTABLE
BOEING1               CPLEX                 OPTIMAL               17.468899ms
BOEING1               Hipparchus            FAILED                UNSTABLE
BOEING1               ojAlgo                OPTIMAL               141.358322ms
BOEING2               ACM                   FAILED                UNSTABLE
BOEING2               CPLEX                 OPTIMAL               4.691281ms
BOEING2               Hipparchus            FAILED                UNSTABLE
BOEING2               ojAlgo                OPTIMAL               8.989652ms
BORE3D                ACM                   FAILED                TIMEOUT
BORE3D                CPLEX                 OPTIMAL               5.055457ms
BORE3D                Hipparchus            FAILED                TIMEOUT
BORE3D                ojAlgo                OPTIMAL               3.456446ms
BRANDY                ACM                   FAILED                TIMEOUT
BRANDY                CPLEX                 OPTIMAL               8.520516ms
BRANDY                Hipparchus            FAILED                TIMEOUT
BRANDY                ojAlgo                OPTIMAL               7.21827ms
CAPRI                 ACM                   FAILED                UNSTABLE
CAPRI                 CPLEX                 OPTIMAL               8.327037ms
CAPRI                 Hipparchus            FAILED                UNSTABLE
CAPRI                 ojAlgo                OPTIMAL               45.807463ms
DEGEN2                ACM                   FAILED                TIMEOUT
DEGEN2                CPLEX                 OPTIMAL               20.740736ms
DEGEN2                Hipparchus            OPTIMAL               1786.38462ms
DEGEN2                ojAlgo                OPTIMAL               242.32134ms
E226                  ACM                   FAILED                TIMEOUT
E226                  CPLEX                 OPTIMAL               11.069458ms
E226                  Hipparchus            OPTIMAL               92.910781ms
E226                  ojAlgo                OPTIMAL               16.670109ms
ETAMACRO              ACM                   FAILED                TIMEOUT
ETAMACRO              CPLEX                 OPTIMAL               16.462966ms
ETAMACRO              Hipparchus            OPTIMAL               1067.294064ms
ETAMACRO              ojAlgo                OPTIMAL               44.106707ms
FFFFF800              ACM                   FAILED                TIMEOUT
FFFFF800              CPLEX                 OPTIMAL               18.735497ms
FFFFF800              Hipparchus            FAILED                TIMEOUT
FFFFF800              ojAlgo                OPTIMAL               88.950183ms
FINNIS                ACM                   FAILED                TIMEOUT
FINNIS                CPLEX                 OPTIMAL               13.818495ms
FINNIS                Hipparchus            FAILED                TIMEOUT
FINNIS                ojAlgo                OPTIMAL               314.872777ms
FORPLAN               ACM                   FAILED                UNSTABLE
FORPLAN               CPLEX                 OPTIMAL               8.894963ms
FORPLAN               Hipparchus            OPTIMAL               239.978635ms
FORPLAN               ojAlgo                OPTIMAL               9.780629ms
GROW15                ACM                   FAILED                TIMEOUT
GROW15                CPLEX                 OPTIMAL               34.779264ms
GROW15                Hipparchus            FAILED                TIMEOUT
GROW15                ojAlgo                OPTIMAL               326.21745ms
GROW22                ACM                   FAILED                TIMEOUT
GROW22                CPLEX                 OPTIMAL               109.099592ms
GROW22                Hipparchus            FAILED                WRONG
GROW22                ojAlgo                OPTIMAL               1669.318161ms
GROW7                 ACM                   FAILED                TIMEOUT
GROW7                 CPLEX                 OPTIMAL               11.710556ms
GROW7                 Hipparchus            FAILED                TIMEOUT
GROW7                 ojAlgo                OPTIMAL               18.688514ms
ISRAEL                ACM                   OPTIMAL               103.563223ms
ISRAEL                CPLEX                 OPTIMAL               5.685817ms
ISRAEL                Hipparchus            OPTIMAL               21.941009ms
ISRAEL                ojAlgo                OPTIMAL               7.192418ms
KB2                   ACM                   OPTIMAL               6.720416ms
KB2                   CPLEX                 OPTIMAL               2.016831ms
KB2                   Hipparchus            OPTIMAL               2.361479ms
KB2                   ojAlgo                OPTIMAL               0.562869ms
LOTFI                 ACM                   OPTIMAL               546.936236ms
LOTFI                 CPLEX                 OPTIMAL               4.722516ms
LOTFI                 Hipparchus            OPTIMAL               74.253037ms
LOTFI                 ojAlgo                OPTIMAL               2.791933ms
PILOT4                ACM                   FAILED                UNSTABLE
PILOT4                CPLEX                 OPTIMAL               43.948191ms
PILOT4                Hipparchus            FAILED                UNSTABLE
PILOT4                ojAlgo                OPTIMAL               719.960153ms
RECIPELP              ACM                   OPTIMAL               91.984139ms
RECIPELP              CPLEX                 OPTIMAL               2.647297ms
RECIPELP              Hipparchus            OPTIMAL               18.608792ms
RECIPELP              ojAlgo                OPTIMAL               1.076786ms
SC105                 ACM                   OPTIMAL               29.210945ms
SC105                 CPLEX                 OPTIMAL               2.386598ms
SC105                 Hipparchus            OPTIMAL               6.913549ms
SC105                 ojAlgo                OPTIMAL               0.784871ms
SC205                 ACM                   OPTIMAL               196.771752ms
SC205                 CPLEX                 OPTIMAL               4.356467ms
SC205                 Hipparchus            OPTIMAL               35.378977ms
SC205                 ojAlgo                OPTIMAL               3.716465ms
SC50A                 ACM                   OPTIMAL               3.713265ms
SC50A                 CPLEX                 OPTIMAL               1.637211ms
SC50A                 Hipparchus            OPTIMAL               1.447684ms
SC50A                 ojAlgo                OPTIMAL               0.340661ms
SC50B                 ACM                   OPTIMAL               3.824722ms
SC50B                 CPLEX                 OPTIMAL               1.352292ms
SC50B                 Hipparchus            OPTIMAL               1.598036ms
SC50B                 ojAlgo                OPTIMAL               0.362158ms
SCAGR25               ACM                   FAILED                TIMEOUT
SCAGR25               CPLEX                 OPTIMAL               12.959499ms
SCAGR25               Hipparchus            FAILED                TIMEOUT
SCAGR25               ojAlgo                OPTIMAL               109.784739ms
SCAGR7                ACM                   OPTIMAL               104.018329ms
SCAGR7                CPLEX                 OPTIMAL               4.137262ms
SCAGR7                Hipparchus            OPTIMAL               22.542501ms
SCAGR7                ojAlgo                OPTIMAL               2.415491ms
SCFXM1                ACM                   FAILED                TIMEOUT
SCFXM1                CPLEX                 OPTIMAL               12.276423ms
SCFXM1                Hipparchus            FAILED                TIMEOUT
SCFXM1                ojAlgo                OPTIMAL               14.529425ms
SCFXM2                ACM                   FAILED                TIMEOUT
SCFXM2                CPLEX                 OPTIMAL               27.587144ms
SCFXM2                Hipparchus            FAILED                TIMEOUT
SCFXM2                ojAlgo                OPTIMAL               108.236033ms
SCORPION              ACM                   OPTIMAL               998.703727ms
SCORPION              CPLEX                 OPTIMAL               6.786039ms
SCORPION              Hipparchus            OPTIMAL               128.931352ms
SCORPION              ojAlgo                OPTIMAL               10.188435ms
SCSD1                 ACM                   FAILED                UNSTABLE
SCSD1                 CPLEX                 OPTIMAL               6.155597ms
SCSD1                 Hipparchus            OPTIMAL               395.60068ms
SCSD1                 ojAlgo                OPTIMAL               6.227832ms
SCTAP1                ACM                   FAILED                TIMEOUT
SCTAP1                CPLEX                 OPTIMAL               7.630562ms
SCTAP1                Hipparchus            OPTIMAL               304.390071ms
SCTAP1                ojAlgo                OPTIMAL               14.170339ms
SEBA                  ACM                   FAILED                TIMEOUT
SEBA                  CPLEX                 OPTIMAL               9.795508ms
SEBA                  Hipparchus            FAILED                TIMEOUT
SEBA                  ojAlgo                OPTIMAL               212.850247ms
SHARE1B               ACM                   OPTIMAL               276.393102ms
SHARE1B               CPLEX                 OPTIMAL               5.268421ms
SHARE1B               Hipparchus            OPTIMAL               49.818582ms
SHARE1B               ojAlgo                OPTIMAL               5.161425ms
SHARE2B               ACM                   OPTIMAL               31.388091ms
SHARE2B               CPLEX                 OPTIMAL               3.36695ms
SHARE2B               Hipparchus            OPTIMAL               6.988701ms
SHARE2B               ojAlgo                OPTIMAL               1.098968ms
STAIR                 ACM                   FAILED                UNSTABLE
STAIR                 CPLEX                 OPTIMAL               16.468764ms
STAIR                 Hipparchus            FAILED                UNSTABLE
STAIR                 ojAlgo                OPTIMAL               42.203827ms
STOCFOR1              ACM                   OPTIMAL               34.564914ms
STOCFOR1              CPLEX                 OPTIMAL               2.932963ms
STOCFOR1              Hipparchus            OPTIMAL               9.242821ms
STOCFOR1              ojAlgo                OPTIMAL               1.156741ms
TUFF                  ACM                   FAILED                TIMEOUT
TUFF                  CPLEX                 OPTIMAL               11.663417ms
TUFF                  Hipparchus            FAILED                TIMEOUT
TUFF                  ojAlgo                FAILED                TIMEOUT
VTP-BASE              ACM                   FAILED                UNSTABLE
VTP-BASE              CPLEX                 OPTIMAL               3.198082ms
VTP-BASE              Hipparchus            OPTIMAL               46.099096ms
VTP-BASE              ojAlgo                OPTIMAL               2.165055ms
